ATP Series Air Cooled Central Chiller

Sales, Service & Support

APT Air-Cooled:

	For new or existing chilled water systems of 5-180 tons
	Require external pumping system

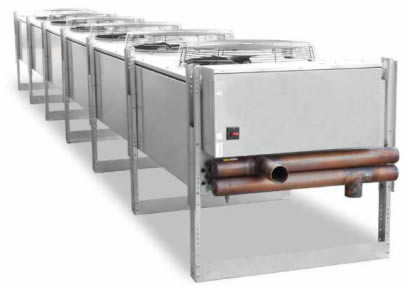

	Condenser is located outside process facility
	Stationary units

Chiller Features:

	Screw and Rotary Compressors
	Microprocessor Controls
	Direct expansion shell and tube or brazed plate heat exchanger
	Copper coil aluminum finned condenser
	HCF-143A or HFC-410A refrigerants
	Electronic expansion valve

Air-Cooled Water Chillers:

Process heat removed by the refrigeration system is dissipated by ambient air.

Perfect for process fluids between 20 degress F and 70 degrees F.

Proudly made in the USA.

If you have questions about how a our Air Cooled Central Chillers will benefit your application, or would like a quote please click here to contact us now.

ATP Series Water Chillers:

Model	Tons	Zones
Model	Tons	Zones
C-5APT-RC	5	SINGLE	(Typical Remote Condenser used)
C-7.5APT-RC	9.1	SINGLE
C-10APT-RC	11.5	SINGLE
C-15APT-RC	15	SINGLE
C-20APT-RC	19	SINGLE
C-25APT-RC	25	SINGLE
C-30APT-RC	30	SINGLE
C-35APT-RC	36	SINGLE
C-40APT-RC	36.7	SINGLE
C-50APT-RC	46.4	SINGLE
C-60APT-RC	60	SINGLE
CC-20APT-RC	23	DUAL
CC-30APT-RC	30	DUAL
CC-40APT-RC	38	DUAL
CC-50APT-RC	50	DUAL
CC-60APT-RC	60	DUAL
CC-80APT-RC	80	DUAL
CC-100APT-RC	90	DUAL
CC-120APT-RC	120	DUAL
CCC-90APT-RC	90	TRIPLE
CCC-120APT-RC	120	TRIPLE
CCC-150APT-RC	135	TRIPLE
CCC-180APT-RC	180	TRIPLE

Tons = 12,000 Btu/hr. Capacity at 50°F LWT and 95°F ambient for air-cooled units.
