Air Cooled Central Chiller with Reservoir and Pump

Sales, Service & Support

Air Cooled Central Chiller with Reservoir and Pump


OACS and TITAN Series:


  5 - 210 ton capacity
  Indoor and outdoor installations
  Multiple referigeration zones
  Dual configuration water reservoir and pumping system
  For process fluids from 20 - 70 degrees F


Standard Features:


  Rotary or Hermetic Scroll Compressors
  Brazed plate or shell & tube evaporator
  Liquid line solenoid valve
  Non-Ozone depleting refrigeration
  Branch circuit fusing
  Outdoor rated cabinet


Central Chillers PDF

Air-Cooled Water Chillers:

Process heat removed by the refrigeration syatem is dissipated by ambient air.

Perfect for process fluids between 20 degress F and 70 degrees F.

Proudly made in the USA.

If you have questions about how a our Glycol Chillers will benefit your application.




TITAN: Air Cooloed Water Chillers with Reservoirs and Pumps:


  Model Tons Configuration Zone's GPM

  TI-20A 20.5 The refrigeration system, reservoir and pumping system remain indoors while the remote air-cooled condenser is located outside the production facility. Dual 48
  TI-30A 28.5 Dual 72
  TI-40A 40 Dual 96
  TI-50A 50 Dual 120
  TI-60A 57 Dual 144
  TI-80A 80 Dual 240
  TI-100A 90 Dual 300
  TI-120AD 120 Dual 360
  TI-90A 85.5 Triple 270
  TI-120A 120 Triple 360
  TI-150A 135 Triple 450
  TI-180A 180 Triple 540



Tons = 12,000 Btu/hr. Capacity at 50°F LWT and 95°F ambient for air-cooled units.
Flow = gallons per minutes (GPM)

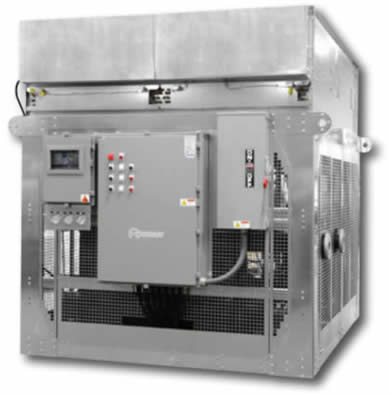

OACS: Air Cooloed Water Chillers with Reservoirs and Pumps:


  Model Tons Configuration Zone's GPM


  OACS-5S-M1-1P 4.9 Designed for Outdoor installations as a complete package including pumping system and water reservoir. Single 12
  OACS-7.5S-M1-1P 7.1 Single 18
  OACS-10S-M1-1P 9.8 Single 24
  OACS-15S-M1-1P 14.5 Single 36
  OACS-20S-M1-1P 18.5 Single 48
  OACS-30S-M1-1P 30 Single 72
  OACS-40S-M1-1P 36.7 Single 96
  OACS-50S-M1-1P 46.8 Single 120
  OACS-60S-MZC-2P 60.7 Single 144
  OACS-75S-MZC-2P 73 Single 175
  OACS-95S-MZC-2P 94 Single 226
  OACS-105S-MZC-2P 102 Single 245
  OACS-125S-MZC-2P 123 Single 312
  OACS-20D-MZC-2P 19.6 Dual 48
  OACS-30D-MZC-2P 29 Dual 72
  OACS-40D-MZC-2P 37 Dual 96
  OACS-60D-MZC-2P 60 Dual 144
  OACS-100D-MZC-2P 93.7 Dual 240
  OACS-120D-MZC-2P 119.5 Dual 288
  OACS-150D-MZC-2P 146 Dual 350
  OACS-210D-MZC-2P 204 Dual 490

Tons = 12,000 Btu/hr. Capacity at 50°F LWT and 95°F ambient for air-cooled units.
Flow = gallons per minutes (GPM)



Quotes, Engineering & Ordering Information: Advantage Chillers, please click here to contact us now.
