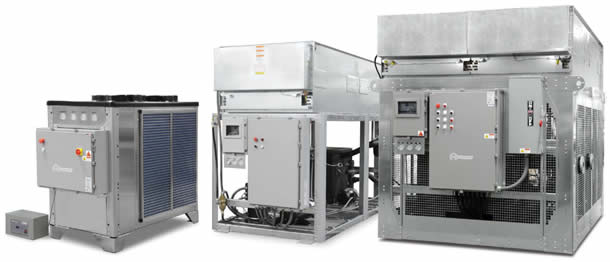

Outdoor Glycol Chillers

Sales, Service & Support

For use in industries such as Breweries, Wineries, Distilleries, Medical, Industrial, Agriculture/Food, Data Centers, Machine Tooling, and Plastics Processing.

5 to 10 Horsepower -

20 to 210 Horsepower -

If you have questions about how a our Glycol Chillers will benefit your application, or would like a quote please click here to contact us now.

Materials of Construction:

	Nema 1 Electrical Construction
	Scroll Compressor
	Air Cooled Condenser
	Brazed Plate Evaporator
	Filter-Dryer
	Automatic Make-Up Water
	Castors for Portability
	Powder Coated Steel Frame
	Thermostatic Expansion Valve

Chiller Applications:

	Brite Tanks
	Wort Coolers
	Fermentation Tanks
	Brite Tank Temperature Maintenance
	Fermentation Tank Crash Cooling
	Cold Liquor Tank Cooling
	Storage Room Cooling
	Indoor and Outdoor Applications

Glycol Chillers:

Model	Capacity BTU/HR	Compressor HP	Pump HP	Flow GPM
Model	Capacity BTU/HR	Compressor HP	Pump HP	Flow GPM
BCD-5A-N4	30203	5	2	12
BC-7.5A-N4	45083	7.5	2	18
BCD-10A-N4	59683	10	2	24
OACS-15S-M1-1P-BC	92774	15	3	36
OACS-20S-M1-1P-BC	117274	20	3	48
OACS-25S-M1-1P-BC	149456	25	5	60
OACS-30S-M1-1P-BC	197456	30	5	72
OACS-40S-M1-1P-BC	263000	20	7.5	96
OACS-50S-M1-1P-BC	323000	2@25	7.5	120
OACS-60S-MZC-2P-BC	417000	2@30	7.5	144
OACS-75-MZC-2P-BC	438000	75	10	175
OACS-95-MZC-2P-BC	564000	95	15	226
OACS-105S-MZC-2P-BC	612000	105	20	245
OACS-125S-MZC-2P-BC	738000	125	20	245
OACS-20D-MZC-2P-BC	119336	2@10	3	48
OACS-30D-MZC-2P-BC	185548	2@15	5	72
OACS-40D-MZC-2P-BC	234548	2@20	7.5	96
OACS-50D-MZC-2P-BC	298912	2@25	7.5	120
OACS-60D-MZC-2P-BC	394912	2@30	7.5	144
OACS-80D-MZC-2P-BC	526000	2@40	10	192
OACS-100D-MZC-2P-BC	654000	2@50	15	240
OACS-120D-MZC-2P-BC	834000	2@60	20	288
OACS-150D-MZC-2P-BC	876000	2@75	25	350
OACS-190D-MZC-2P-BC	1128000	2@90	30	451
OACS-210D-MZC-2P-BC	1224000	2@110	30	490

Quotes, Engineering & Ordering Information: Advantage Chillers, please click here to contact us now.
