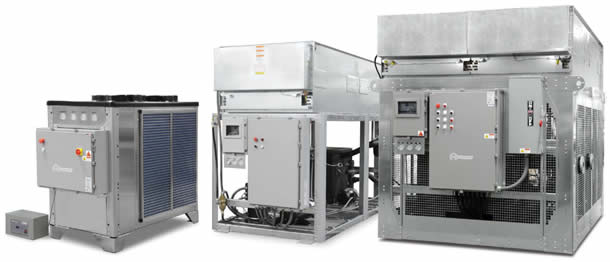

Outdoor Glycol Chillers

Sales, Service & Support

Outdoor Glycol Chillers

For use in industries such as Breweries, Wineries, Distilleries, Medical, Industrial, Agriculture/Food, Data Centers, Machine Tooling, and Plastics Processing.

5 to 10 Horsepower - 20 to 210 Horsepower -

If you have questions about how a our Glycol Chillers will benefit your application, or would like a quote please contact us: 1-888-226-8522



Materials of Construction:


  Nema 1 Electrical Construction
  Scroll Compressor
  Air Cooled Condenser
  Brazed Plate Evaporator
  Filter-Dryer
  Automatic Make-Up Water
  Castors for Portability
  Powder Coated Steel Frame
  Thermostatic Expansion Valve


Chiller Applications:


  Brite Tanks
  Wort Coolers
  Fermentation Tanks
  Brite Tank Temperature Maintenance
  Fermentation Tank Crash Cooling
  Cold Liquor Tank Cooling
  Storage Room Cooling
  Indoor and Outdoor Applications



Glycol Chillers:


  Model Capacity BTU/HR Compressor HP Pump HP Flow GPM

  BCD-5A-N4 30203 5 2 12
  BC-7.5A-N4 45083 7.5 2 18
  BCD-10A-N4 59683 10 2 24
  OACS-15S-M1-1P-BC 92774 15 3 36
  OACS-20S-M1-1P-BC 117274 20 3 48
  OACS-25S-M1-1P-BC 149456 25 5 60
  OACS-30S-M1-1P-BC 197456 30 5 72
  OACS-40S-M1-1P-BC 263000 20 7.5 96
  OACS-50S-M1-1P-BC 323000 2@25 7.5 120
  OACS-60S-MZC-2P-BC 417000 2@30 7.5 144
  OACS-75-MZC-2P-BC 438000 75 10 175
  OACS-95-MZC-2P-BC 564000 95 15 226
  OACS-105S-MZC-2P-BC 612000 105 20 245
  OACS-125S-MZC-2P-BC 738000 125 20 245
  OACS-20D-MZC-2P-BC 119336 2@10 3 48
  OACS-30D-MZC-2P-BC 185548 2@15 5 72
  OACS-40D-MZC-2P-BC 234548 2@20 7.5 96
  OACS-50D-MZC-2P-BC 298912 2@25 7.5 120
  OACS-60D-MZC-2P-BC 394912 2@30 7.5 144
  OACS-80D-MZC-2P-BC 526000 2@40 10 192
  OACS-100D-MZC-2P-BC 654000 2@50 15 240
  OACS-120D-MZC-2P-BC 834000 2@60 20 288
  OACS-150D-MZC-2P-BC 876000 2@75 25 350
  OACS-190D-MZC-2P-BC 1128000 2@90 30 451
  OACS-210D-MZC-2P-BC 1224000 2@110 30 490





Quotes, Engineering & Ordering Information: Advantage Chillers, please contact us: 1-888-226-8522
