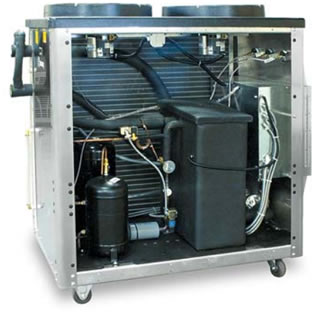

Air Cooled Portable Chiller

Sales, Service & Support

Air Cooled Portable Chiller
Air Cooled Portable Chillers PDF

If you have questions about how an air cooeld glycol chiller will benefit your application, or would like a quote please contact us: 1-888-226-8522

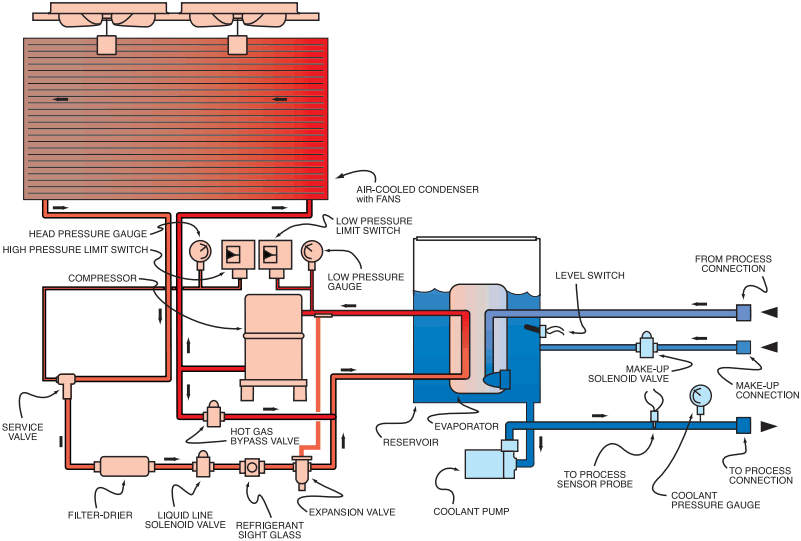

Materials of Construction:


  Nema 1 Electrical Construction
  Scroll Compressor
  Air Cooled Condenser
  Brazed Plate Evaporator
  Filter-Dryer
  Automatic Make-Up Water
  Castors for Portability
  Powder Coated Steel Frame
  Thermostatic Expansion Valve


Chiller Applications:


  Fermentation Tanks
  Brite Tanks
  Wort Coolers
  Brite Tank Temperature Maintenance
  Fermentation Tank Crash Cooling
  Cold Liquor Tank Cooling
  Storage Room Cooling
  Indoor and Outdoor Applications







Glycol Chillers:


  Model Capacity Tons Capacity kW Pump HP Pump GPM

  M1-.25A .29 1 1/3 .7
  M1-.33A .39 1.36 1/3 .9
  M1-.5A .5 1.75 1/3 1.2
  M1-.75A .75 2.53 1/3 1.8
  M1-1A 1 3.5 1/2 2.4
  M1-1.5A 1.5 5.26 1/2 3.6
  M1-2A 2 7 3/4 4.8
  M1-3A 2.9 10.8 3/4 7.2
  M1-4A 4 14 3/4 9.6
  M1D-5A 4.9 17.2 2 12
  M1D-7.5A 7.2 25.8 2 18
  M1D-10A 9.8 34.4 2 24
  M1D-15AF 14.5 50.9 3 36
  M1-20AF 19.3 67.7 3 48
  M1D-15AB 14.5 50.9 3 48
  M1-20AB 19.3 67.7 3 48
  M1-25A 24.5 N/A 5 60
  M1-30A 29 101.8 5 72

Air Cooled Chillers



Quotes, Engineering & Ordering Information: Advantage Chillers, please contact us: 1-888-226-8522
