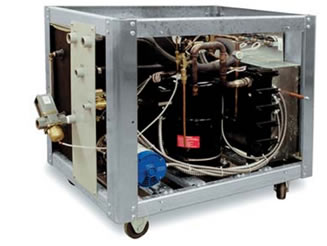

Water Cooled Portable Chiller

Sales, Service & Support

Water Cooled Portable Chiller

If you have questions about how a water cooled portable glycol chillers will benefit your application, or would like a quote please contact us: 1-888-226-8522


Features:


  Stainless steel sheet metal
  Scroll Compressor
  Tube-in-tube condenser
  Brazed Plate Evaporator
  Filter-Dryer
  Automatic Make-Up Water
  Castors for Portability
  Powder Coated Steel Frame
  Thermostatic Expansion Valve


Chiller Applications:


  For cooling fluids in support of industrial processes
  Portable units
  Internal pumping and reservoir
  Process fluids between 20F and 70F







Glycol Chillers:


  Model Capacity Tons Capacity kW Pump HP Pump GPM

  M1-2W 2 7 3/4 4.8
  M1-3W 3 10.5 3/4 7.2
  M1D-5W 5.1 17.9 2 12
  M1-7.5W 7.6 26.7 2 19
  M1D-10W 10.6 37.2 2 26
  M1D-15W 15 52.6 3 36
  M1-20W 20 70.2 3 48
  M1-25W 26 91.2 5 60
  M1-30W 30 105.3 5 72
  M1-40W 40 140.4 7.5 92

Water Cooled Portable Chiller



Quotes, Engineering & Ordering Information: Advantage Chillers, please contact us: 1-888-226-8522
