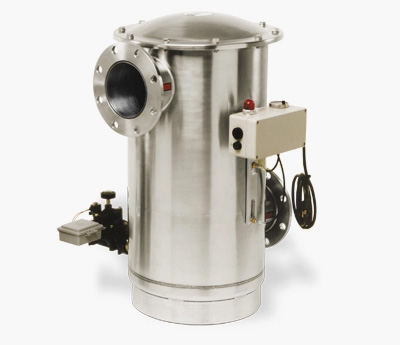

Inline Filtration

In-line filters help maintain fluid quality by removing suspended solids, rust, scale, or other particulate contaminants that could damage pumps, valves, or heat exchangers. They prevent blockages, reduce wear on moving parts, and ensure consistent performance and flow stability across the cooling or processing loop.

Common configurations for in-line filters include:

• Compact Inline Strainers: For small flow applications, ideal for lab setups, small chillers or auxiliary circuits.
• High-Capacity Inline Filters: Built for larger systems with flow rates up to 2000 GPM, suitable for central cooling loops, industrial chillers, or processing lines.
• Multi-unit Manifolded Filters: Multiple filters installed in parallel to increase throughput or provide redundancy while maintaining filtration efficiency.

The internal conical-screen design creates a self-cleaning effect. As fluid flows upward through the screen, heavier debris is forced downward into a reservoir where it is retained until flushed out. This design minimizes pressure drop — often less than 1 psi — and avoids frequent clogging. Maintenance is simplified through a flush port that allows debris removal without disassembly or system downtime. :contentReference[oaicite:0]{index=0}

Key specifications and features include:

• Stainless Steel Construction: Durable 304-grade housings and filter elements for long-term corrosion resistance. :contentReference[oaicite:1]{index=1}
• Wide Flow Range: Filters available for 100 to 2000 GPM flow rates, covering small to large system requirements. :contentReference[oaicite:2]{index=2}
• Pressure Ratings up to 150 PSI: Suitable for most industrial coolant and water circulation systems. :contentReference[oaicite:3]{index=3}
• Selectable Mesh Options: Standard 50 or 100 mesh screens, with finer or custom mesh available for specific contaminant removal needs. :contentReference[oaicite:4]{index=4}
• Flush Port & Reservoir: Allows easy removal of accumulated debris without system shutdown. :contentReference[oaicite:5]{index=5}
• Optional Accessories: Pressure-differential alarms, automatic flush timers, and full-flow bypass valves to support maintenance and continuous operation. :contentReference[oaicite:6]{index=6}
